Internal-External Cross-Validation Tutorial
A Practical Guide to Validating Clinical Prediction Models
Introduction
Welcome to this interactive tutorial on Internal-External Cross-Validation (IECV) for clinical prediction models. This guide will walk you through:
- Understanding when and why to use IECV
- Running IECV with different model types
- Interpreting the results
- Creating publication-quality visualizations
What is IECV?
Internal-External Cross-Validation is a validation strategy for prediction models developed using multi-center or multi-study data. Unlike standard cross-validation that randomly splits data, IECV leverages the natural clustering in your data (hospitals, studies, time periods) to provide more realistic performance estimates.
When to use IECV
IECV is ideal when:
- You have data from multiple centers/hospitals
- You want to estimate how well your model will perform at new centers
- You need to assess model transportability across settings
The IECV Process
Each center takes a turn being the “external” validation set, while the model is trained on all other centers. This mimics the real-world scenario of applying a model to a new hospital.
Setup
First, let’s load the required packages and our IECV function.
# Load required packages
library(tidyverse)
library(tidymodels)
library(furrr)
library(probably)
library(dcurves)
library(bonsai)
library(cli)
library(patchwork)
# Load the IECV function
source("../R/iecv_modelling.R")Now let’s load our example dataset - simulated multi-center patient data.
# Load the dataset
patient_data <- read_csv("../data/simulated_patient_data.csv")
# Quick overview
glimpse(patient_data)Rows: 1,346
Columns: 7
$ patient_id <chr> "A001", "A002", "A003", "A004", "A005", "A006", "A007", "A…
$ center <chr> "Hospital_A", "Hospital_A", "Hospital_A", "Hospital_A", "H…
$ age <dbl> 73.5, 62.6, 48.7, 68.5, 69.0, 54.1, 80.7, 47.7, 63.8, 49.0…
$ sex <dbl> 0, 0, 1, 1, 0, 1, 0, 1, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 1, 0…
$ biomarker <dbl> 4.18, 4.79, 3.85, 3.97, 4.89, 3.04, 5.12, 5.12, 4.24, 7.84…
$ comorbidity <dbl> 1, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0…
$ outcome <dbl> 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0…# Check the distribution across centers
patient_data %>%
group_by(center) %>%
summarise(
n_patients = n(),
n_events = sum(outcome),
event_rate = mean(outcome) * 100
) %>%
arrange(center) %>%
knitr::kable(
col.names = c("Center", "Patients", "Events", "Event Rate (%)"),
digits = 1,
caption = "Distribution of patients and outcomes by center"
)| Center | Patients | Events | Event Rate (%) |
|---|---|---|---|
| Hospital_A | 198 | 171 | 86.4 |
| Hospital_B | 228 | 184 | 80.7 |
| Hospital_C | 225 | 162 | 72.0 |
| Hospital_D | 208 | 162 | 77.9 |
| Hospital_E | 249 | 211 | 84.7 |
| Hospital_F | 238 | 176 | 73.9 |
Sample Size Considerations
IECV requires at least 3 clusters to function properly. More clusters provide more validation folds and more stable estimates. Each cluster should have enough events for reliable metric estimation.
Running IECV: Logistic Regression
Let’s start with a logistic regression model - the workhorse of clinical prediction modeling.
Basic Usage
# Run IECV with logistic regression
result_lr <- iecv_modelling(
data = patient_data,
outcome = "outcome",
predictors = c("age", "sex", "biomarker", "comorbidity"),
cluster = "center",
model = "logistic",
n_boot = 100, # Bootstrap replicates for CIs
n_cores = 2, # Parallel processing
verbose = TRUE # Show progress
)Viewing Results
The print() method provides a quick summary:
print(result_lr)Internal-External Cross-Validation Results
==========================================
Model: Logistic Regression
Clusters: 6
Metrics: auc, brier, cal_intercept, cal_slope
Bootstrap replicates: 100
Confidence level: 95 %
Summary across clusters:
# A tibble: 4 × 6
metric mean sd median min max
<chr> <dbl> <dbl> <dbl> <dbl> <dbl>
1 AUC 0.737 0.0218 0.745 0.701 0.759
2 Brier Score 0.149 0.0240 0.144 0.115 0.179
3 Calibration Intercept -0.0563 0.752 -0.0101 -0.933 1.15
4 Calibration Slope 1.06 0.157 1.09 0.798 1.27 For more detailed output, use summary():
summary(result_lr)IECV Summary
============
Model: Logistic Regression
Per-cluster results:
# A tibble: 6 × 7
id n_validation n_events auc brier cal_intercept cal_slope
<chr> <int> <dbl> <chr> <chr> <chr> <chr>
1 Resample1 238 176 0.739 (0.675-0.… 0.17… -0.740 (-1.7… 1.074 (0…
2 Resample2 225 162 0.759 (0.690-0.… 0.17… -0.933 (-1.7… 1.269 (0…
3 Resample3 198 171 0.701 (0.612-0.… 0.13… 1.146 (0.635… 0.798 (0…
4 Resample4 208 162 0.724 (0.641-0.… 0.14… -0.199 (-0.8… 0.999 (0…
5 Resample5 249 211 0.752 (0.649-0.… 0.11… 0.210 (-0.67… 1.125 (0…
6 Resample6 228 184 0.751 (0.679-0.… 0.14… 0.179 (-0.37… 1.115 (0…
Pooled summary:
# A tibble: 4 × 6
metric mean sd median min max
<chr> <dbl> <dbl> <dbl> <dbl> <dbl>
1 AUC 0.737 0.0218 0.745 0.701 0.759
2 Brier Score 0.149 0.0240 0.144 0.115 0.179
3 Calibration Intercept -0.0563 0.752 -0.0101 -0.933 1.15
4 Calibration Slope 1.06 0.157 1.09 0.798 1.27 Understanding the Metrics
| Metric | Interpretation |
|---|---|
| AUC | Discrimination - how well the model separates events from non-events |
| Brier Score | Overall accuracy - lower is better |
| Calibration Intercept | Systematic bias - positive means underprediction |
| Calibration Slope | < 1 indicates overfitting, > 1 underfitting |
Visualization
Forest Plots

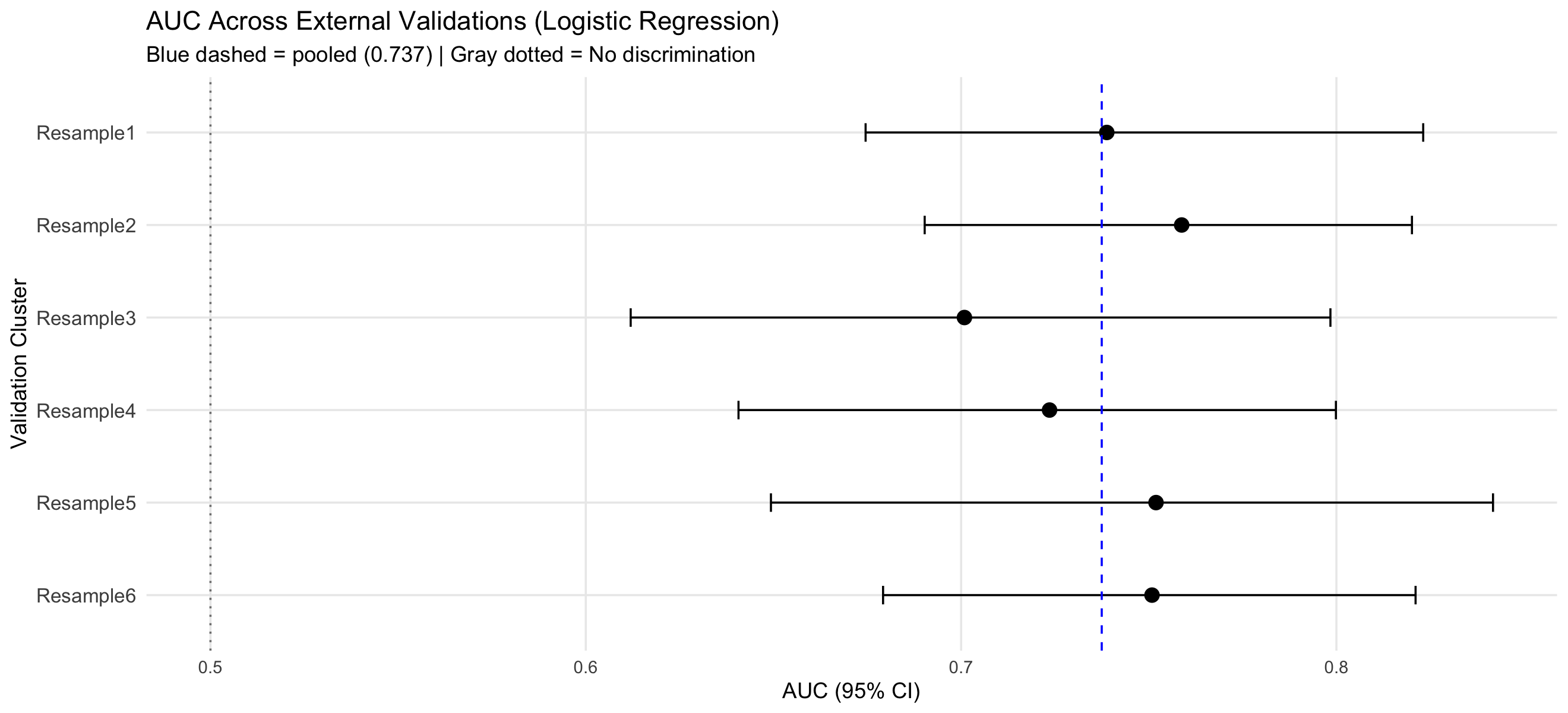

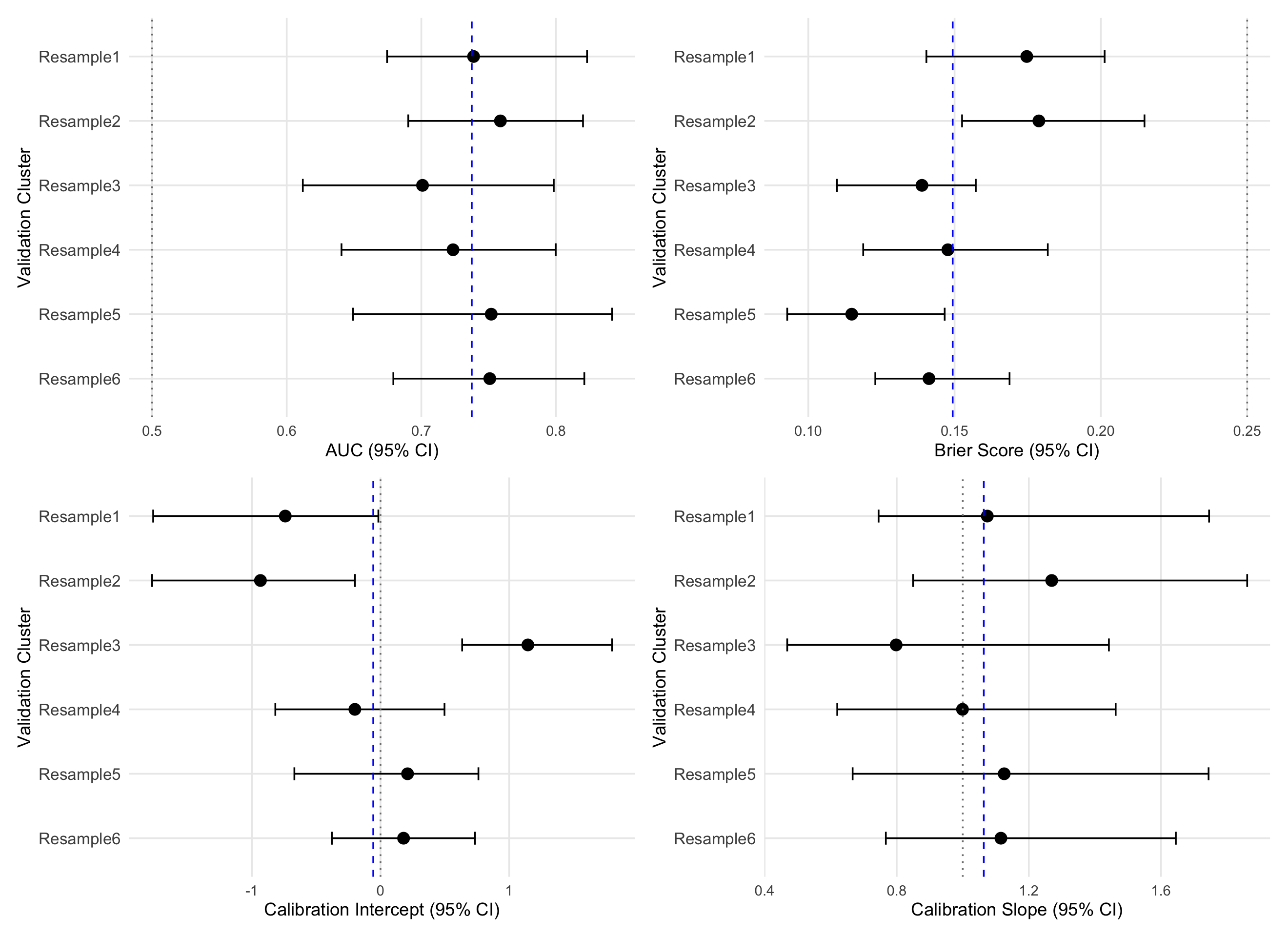

Forest plots show performance across all validation centers, helping identify heterogeneity.
# All metrics in one view
plot(result_lr)
You can also plot individual metrics:
# Just AUC
plot(result_lr, type = "auc")
Calibration Plot

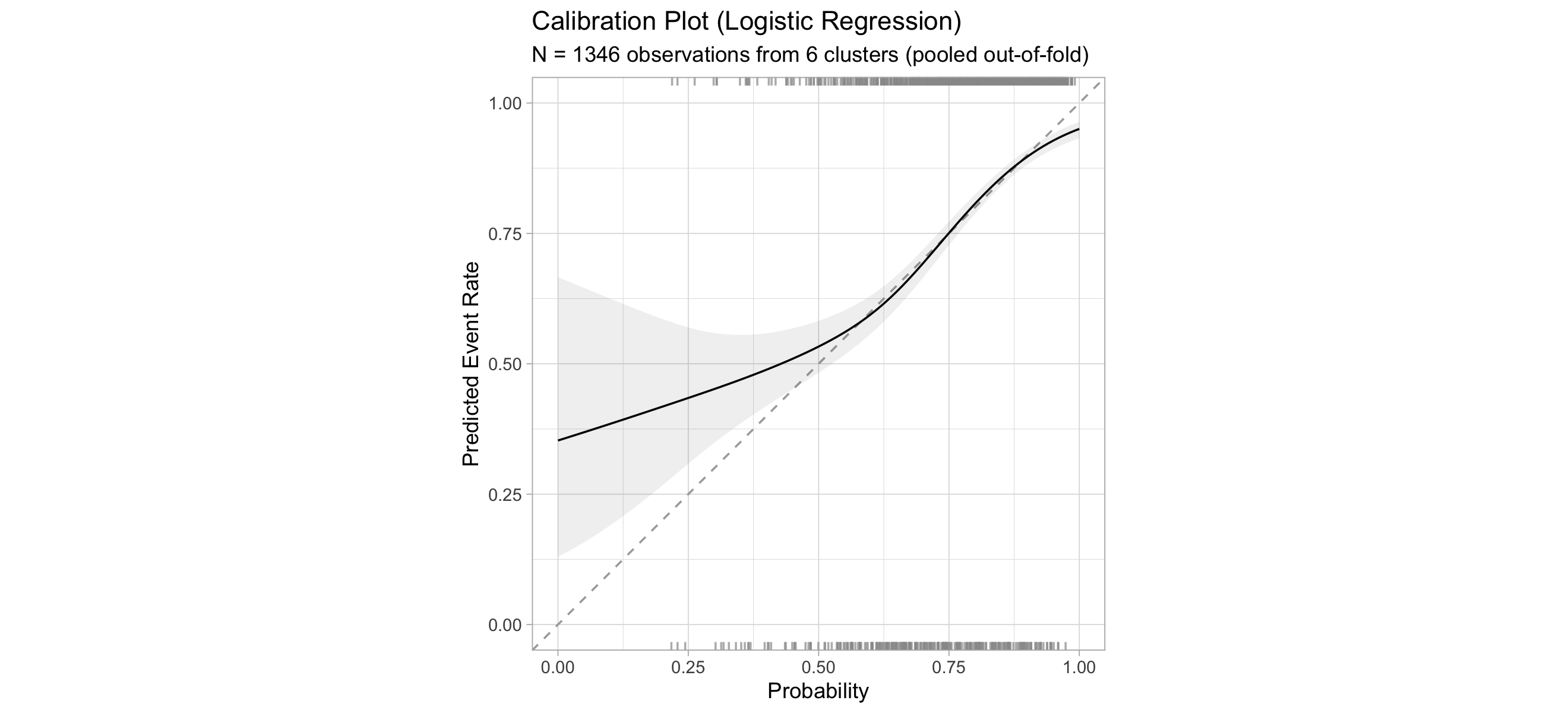

Calibration shows how well predicted probabilities match observed outcomes.
plot(result_lr, type = "calibration")
Reading Calibration Plots
- Perfect calibration: points follow the diagonal line
- Above the line: model underpredicts risk
- Below the line: model overpredicts risk
- The ribbon shows 90% confidence interval
Decision Curve Analysis
Decision curves help assess clinical utility - whether using the model improves decision-making compared to default strategies.
plot(result_lr, type = "dca")
Interpreting Decision Curves
- Net benefit > 0: Using the model is better than treating no one
- Model above “Treat All”: Using the model is better than treating everyone
- The range of threshold probabilities where the model curve is highest indicates where it adds most value
Model Coefficients
For logistic regression, we can extract interpretable odds ratios:
tidy_final_model(result_lr) %>%
knitr::kable(digits = 3, caption = "Logistic Regression Coefficients (Odds Ratios)")| term | estimate | std.error | statistic | p.value | conf.low | conf.high |
|---|---|---|---|---|---|---|
| (Intercept) | 0.036 | 0.453 | -7.313 | 0.000 | 0.015 | 0.088 |
| age | 1.044 | 0.006 | 7.204 | 0.000 | 1.032 | 1.057 |
| sex | 1.631 | 0.145 | 3.375 | 0.001 | 1.230 | 2.172 |
| biomarker | 1.336 | 0.037 | 7.740 | 0.000 | 1.243 | 1.439 |
| comorbidity | 2.285 | 0.162 | 5.105 | 0.000 | 1.673 | 3.158 |
Comparing Model Types
One of the key features of iecv_modelling() is support for multiple model types. Let’s compare logistic regression with gradient boosting models.
XGBoost
result_xgb <- iecv_modelling(
data = patient_data,
outcome = "outcome",
predictors = c("age", "sex", "biomarker", "comorbidity"),
cluster = "center",
model = "xgboost",
n_boot = 100,
n_cores = 2,
verbose = TRUE
)LightGBM
result_lgb <- iecv_modelling(
data = patient_data,
outcome = "outcome",
predictors = c("age", "sex", "biomarker", "comorbidity"),
cluster = "center",
model = "lightgbm",
n_boot = 100,
n_cores = 2,
verbose = TRUE
)Performance Comparison
# Combine summaries
comparison <- bind_rows(
result_lr$summary %>% mutate(model = "Logistic"),
result_xgb$summary %>% mutate(model = "XGBoost"),
result_lgb$summary %>% mutate(model = "LightGBM")
) %>%
select(model, metric, mean, sd, min, max) %>%
arrange(metric, model)
comparison %>%
knitr::kable(
digits = 3,
caption = "Model Comparison: Pooled Performance Across Validation Centers"
)| model | metric | mean | sd | min | max |
|---|---|---|---|---|---|
| LightGBM | AUC | 0.657 | 0.051 | 0.591 | 0.723 |
| Logistic | AUC | 0.737 | 0.022 | 0.701 | 0.759 |
| XGBoost | AUC | 0.704 | 0.033 | 0.645 | 0.742 |
| LightGBM | Brier Score | 0.173 | 0.017 | 0.146 | 0.192 |
| Logistic | Brier Score | 0.149 | 0.024 | 0.115 | 0.179 |
| XGBoost | Brier Score | 0.155 | 0.021 | 0.123 | 0.180 |
| LightGBM | Calibration Intercept | 0.709 | 0.633 | -0.159 | 1.585 |
| Logistic | Calibration Intercept | -0.056 | 0.752 | -0.933 | 1.146 |
| XGBoost | Calibration Intercept | 0.263 | 0.736 | -0.506 | 1.380 |
| LightGBM | Calibration Slope | 0.388 | 0.153 | 0.184 | 0.607 |
| Logistic | Calibration Slope | 1.064 | 0.157 | 0.798 | 1.269 |
| XGBoost | Calibration Slope | 0.767 | 0.177 | 0.441 | 0.944 |

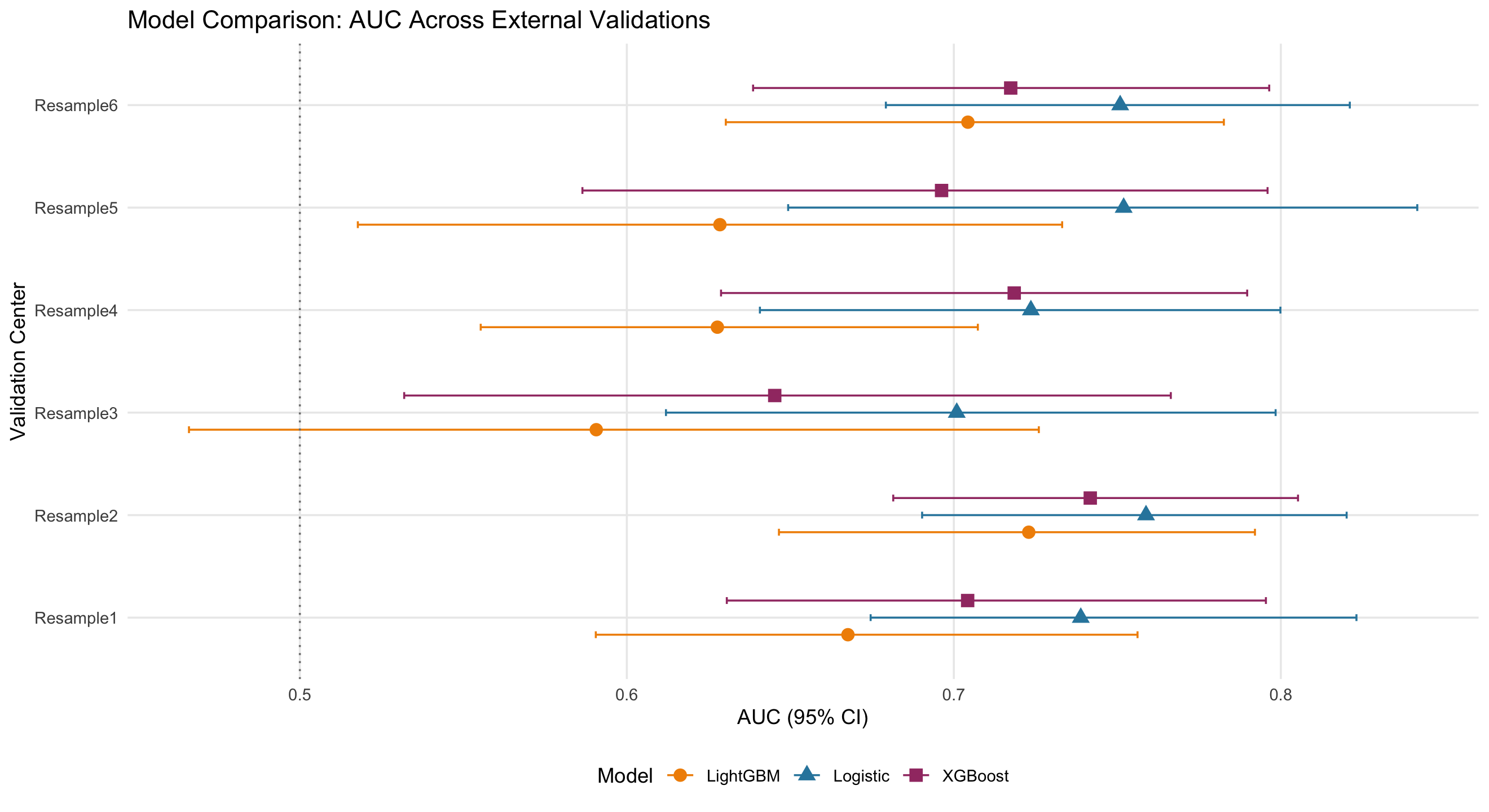

# Visual comparison of AUC
auc_comparison <- bind_rows(
result_lr$cluster_results %>%
select(id, auc, auc_lower, auc_upper) %>%
mutate(model = "Logistic"),
result_xgb$cluster_results %>%
select(id, auc, auc_lower, auc_upper) %>%
mutate(model = "XGBoost"),
result_lgb$cluster_results %>%
select(id, auc, auc_lower, auc_upper) %>%
mutate(model = "LightGBM")
)
ggplot(auc_comparison, aes(x = auc, y = id, color = model, shape = model)) +
geom_point(size = 3, position = position_dodge(width = 0.5)) +
geom_errorbar(
aes(xmin = auc_lower, xmax = auc_upper),
width = 0.2,
position = position_dodge(width = 0.5)
) +
geom_vline(xintercept = 0.5, linetype = "dotted", color = "gray50") +
scale_color_manual(values = c("Logistic" = "#2E86AB", "XGBoost" = "#A23B72", "LightGBM" = "#F18F01")) +
labs(
x = "AUC (95% CI)",
y = "Validation Center",
title = "Model Comparison: AUC Across External Validations",
color = "Model",
shape = "Model"
) +
theme_minimal() +
theme(
legend.position = "bottom",
panel.grid.minor = element_blank()
)
SHAP Analysis for Tree Models
For tree-based models (XGBoost, LightGBM), we can use SHAP (SHapley Additive exPlanations) to understand feature importance and effects.
SHAP Summary Plot
# SHAP beeswarm plot for XGBoost
plot(result_xgb, type = "shap")
Reading SHAP Beeswarm Plots
- Each dot represents a patient
- X-axis: SHAP value (contribution to prediction)
- Color: Feature value (red = high, blue = low)
- Features are sorted by importance (top = most important)
Variable Importance
# SHAP-based importance
variable_importance(result_xgb) %>%
knitr::kable(digits = 3, caption = "Variable Importance (Mean |SHAP Value|)")| variable | mean_abs_shap |
|---|---|
| biomarker | 0.497 |
| age | 0.493 |
| comorbidity | 0.343 |
| sex | 0.238 |

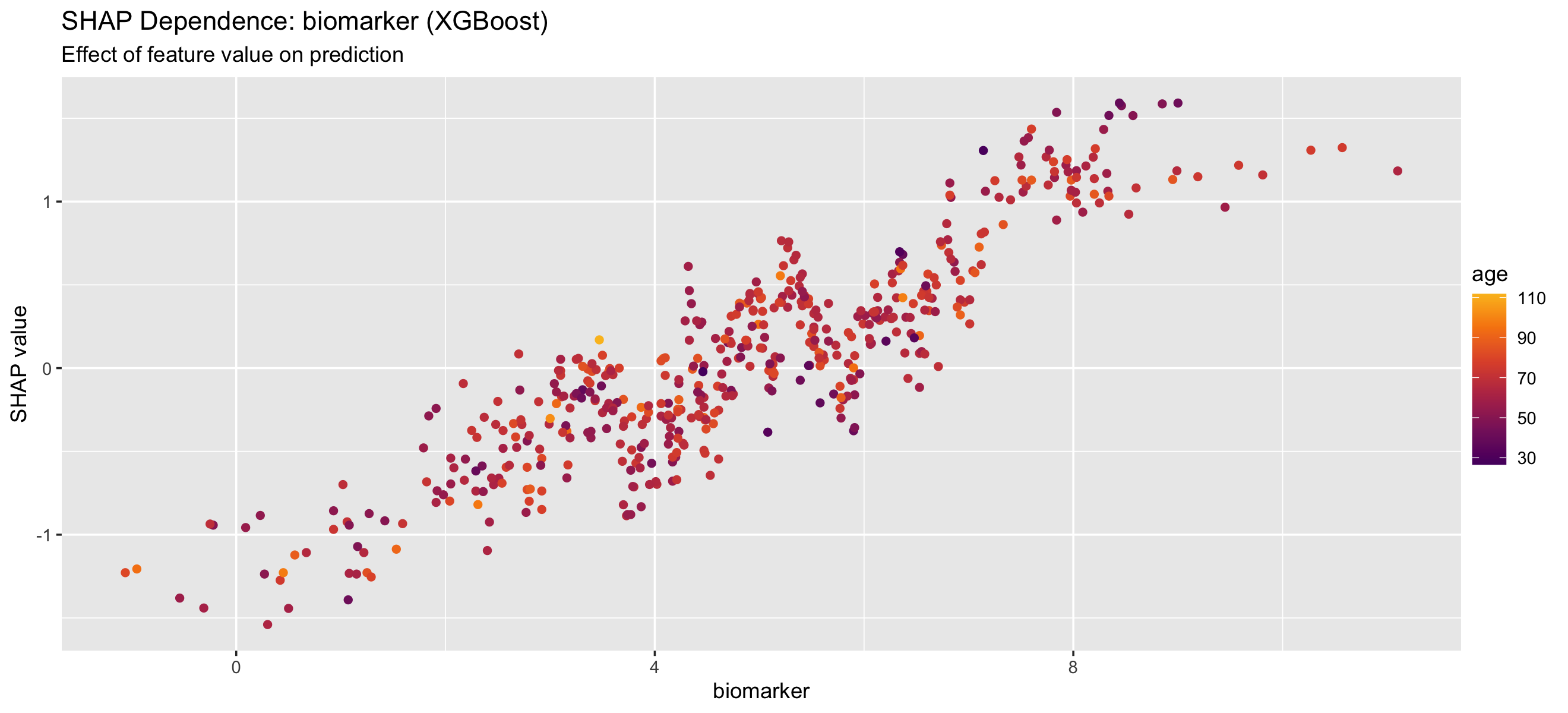

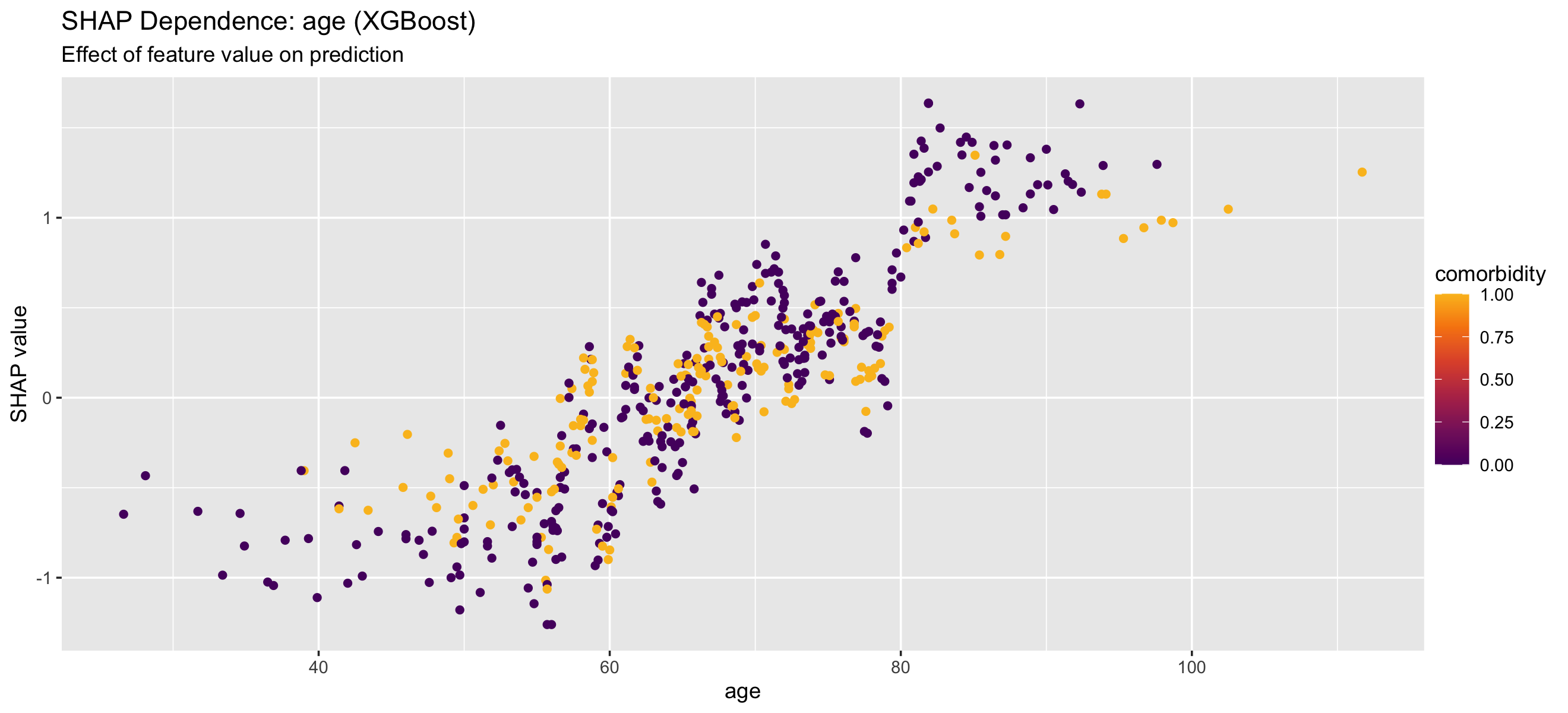

SHAP Dependence Plots
Dependence plots show how a specific feature affects predictions:
plot_shap_dependence(result_xgb, feature = "age")
plot_shap_dependence(result_xgb, feature = "biomarker")
Calibration Comparison

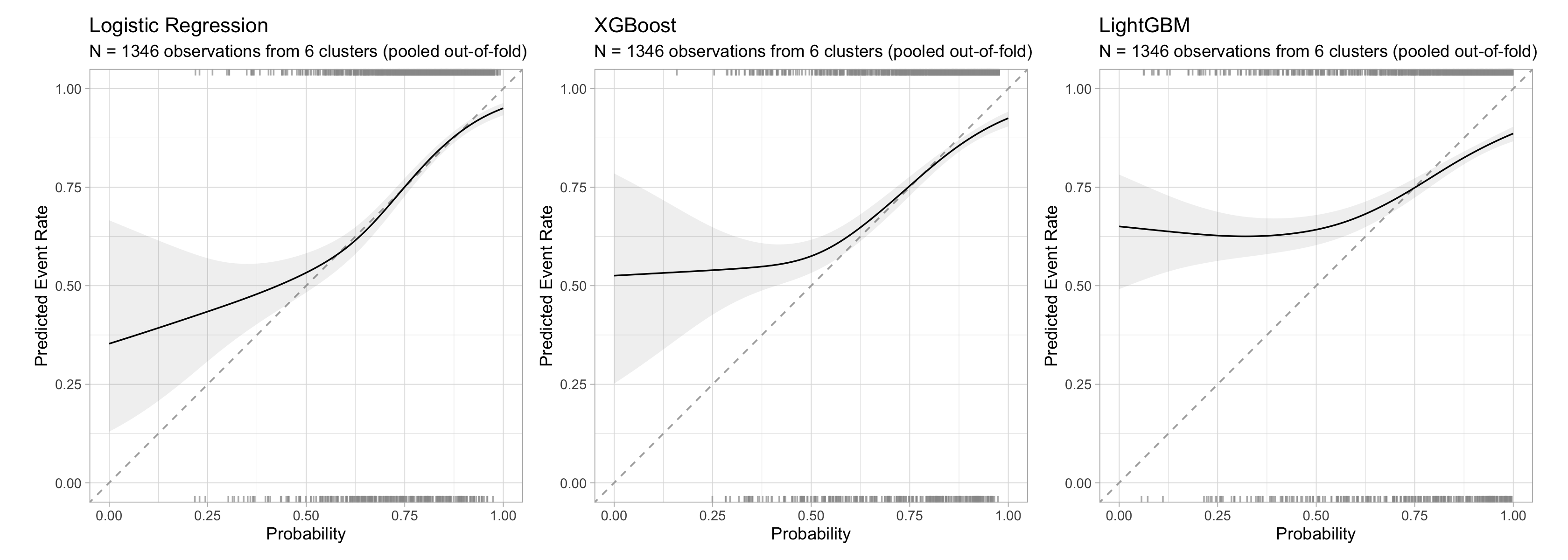

Let’s compare calibration across all three models:
p1 <- plot(result_lr, type = "calibration") +
labs(title = "Logistic Regression") +
theme(legend.position = "none")
p2 <- plot(result_xgb, type = "calibration") +
labs(title = "XGBoost") +
theme(legend.position = "none")
p3 <- plot(result_lgb, type = "calibration") +
labs(title = "LightGBM") +
theme(legend.position = "none")
p1 + p2 + p3 + plot_layout(ncol = 3)

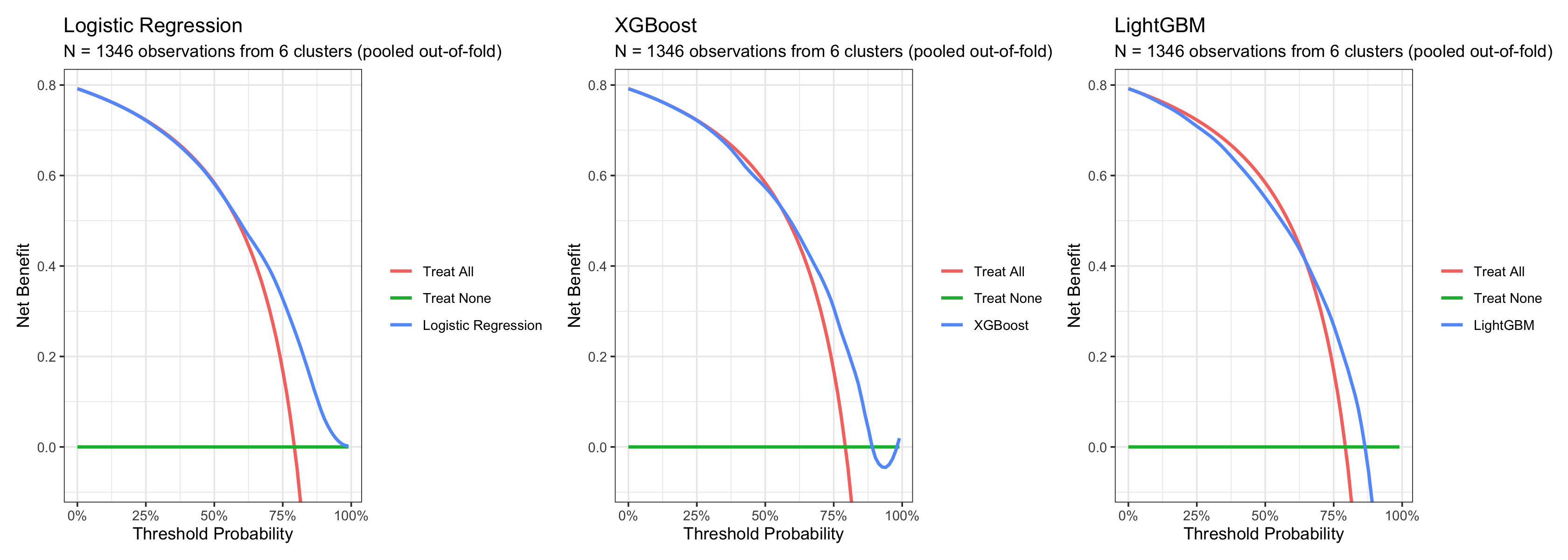

DCA Comparison
d1 <- plot(result_lr, type = "dca") +
labs(title = "Logistic Regression")
d2 <- plot(result_xgb, type = "dca") +
labs(title = "XGBoost")
d3 <- plot(result_lgb, type = "dca") +
labs(title = "LightGBM")
d1 + d2 + d3 + plot_layout(ncol = 3)
Extracting Predictions
You can access the out-of-fold predictions for further analysis:
# Get predictions
preds <- result_lr$predictions
head(preds, 10) %>%
knitr::kable(digits = 3, caption = "Sample Out-of-Fold Predictions")| .row | fold | outcome | predicted_prob | linear_predictor |
|---|---|---|---|---|
| 1 | Resample3 | 1 | 0.862 | 1.828 |
| 2 | Resample3 | 1 | 0.656 | 0.647 |
| 3 | Resample3 | 1 | 0.531 | 0.122 |
| 4 | Resample3 | 0 | 0.761 | 1.159 |
| 5 | Resample3 | 1 | 0.731 | 1.001 |
| 6 | Resample3 | 1 | 0.536 | 0.143 |
| 7 | Resample3 | 1 | 0.841 | 1.663 |
| 8 | Resample3 | 1 | 0.783 | 1.286 |
| 9 | Resample3 | 1 | 0.631 | 0.537 |
| 10 | Resample3 | 1 | 0.849 | 1.727 |
These pooled out-of-fold predictions are useful for:
- Custom calibration analyses
- Threshold selection
- Building calibration plots at specific risk strata
Best Practices
1. Sample Size
- Ensure each cluster has sufficient events (ideally 20+)
- More clusters = more stable estimates
- Consider pooling small clusters if needed
2. Bootstrap Replicates
# For exploratory analysis
n_boot = 50
# For publication
n_boot = 2003. Model Selection
| Scenario | Recommended Model |
|---|---|
| Interpretability needed | Logistic regression |
| Complex non-linear relationships | XGBoost/LightGBM |
| Small sample size | Logistic regression |
| Large sample, many predictors | XGBoost/LightGBM |
4. Reporting Checklist
Summary
In this tutorial, you learned how to:
- Run IECV with
iecv_modelling()for logistic regression, XGBoost, and LightGBM - Interpret metrics including AUC, calibration, and Brier score
- Visualize results with forest plots, calibration curves, and decision curves
- Compare models to choose the best approach for your data
- Use SHAP to understand tree model predictions
IECV provides a robust framework for validating clinical prediction models when you have multi-center data. By treating each center as an external validation, you get realistic estimates of how your model will perform in new settings.
Session Info
sessionInfo()R version 4.5.0 (2025-04-11)
Platform: aarch64-apple-darwin20
Running under: macOS 26.2
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.1
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
time zone: Europe/Copenhagen
tzcode source: internal
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] patchwork_1.3.2 cli_3.6.5 bonsai_0.4.0 dcurves_0.5.1
[5] probably_1.2.0 furrr_0.3.1 future_1.68.0 yardstick_1.3.2
[9] workflowsets_1.1.1 workflows_1.3.0 tune_2.0.1 tailor_0.1.0
[13] rsample_1.3.1 recipes_1.3.1 parsnip_1.4.0 modeldata_1.5.1
[17] infer_1.1.0 dials_1.4.2 scales_1.4.0 broom_1.0.11
[21] tidymodels_1.4.1 lubridate_1.9.4 forcats_1.0.1 stringr_1.6.0
[25] dplyr_1.1.4 purrr_1.2.0 readr_2.1.6 tidyr_1.3.2
[29] tibble_3.3.0 ggplot2_4.0.1 tidyverse_2.0.0
loaded via a namespace (and not attached):
[1] rlang_1.1.6 magrittr_2.0.4 otel_0.2.0
[4] compiler_4.5.0 mgcv_1.9-4 vctrs_0.6.5
[7] lhs_1.2.0 pkgconfig_2.0.3 crayon_1.5.3
[10] fastmap_1.2.0 backports_1.5.0 labeling_0.4.3
[13] utf8_1.2.6 rmarkdown_2.30 prodlim_2025.04.28
[16] tzdb_0.5.0 bit_4.6.0 xfun_0.55
[19] jsonlite_2.0.0 parallel_4.5.0 R6_2.6.1
[22] stringi_1.8.7 RColorBrewer_1.1-3 parallelly_1.46.0
[25] rpart_4.1.24 shapviz_0.10.3 xgboost_3.1.2.1
[28] Rcpp_1.1.0 knitr_1.51 future.apply_1.20.1
[31] lightgbm_4.6.0 Matrix_1.7-4 splines_4.5.0
[34] nnet_7.3-20 timechange_0.3.0 tidyselect_1.2.1
[37] rstudioapi_0.17.1 yaml_2.3.12 timeDate_4051.111
[40] codetools_0.2-20 listenv_0.10.0 lattice_0.22-7
[43] withr_3.0.2 S7_0.2.1 evaluate_1.0.5
[46] archive_1.1.12.1 survival_3.8-3 pillar_1.11.1
[49] generics_0.1.4 vroom_1.6.7 hms_1.1.4
[52] mirai_2.5.3 globals_0.18.0 class_7.3-23
[55] glue_1.8.0 tools_4.5.0 data.table_1.18.0
[58] modelenv_0.2.0 gower_1.0.2 grid_4.5.0
[61] ipred_0.9-15 nlme_3.1-168 DiceDesign_1.10
[64] viridisLite_0.4.2 lava_1.8.2 gtable_0.3.6
[67] GPfit_1.0-9 digest_0.6.39 nanonext_1.7.2
[70] htmlwidgets_1.6.4 farver_2.1.2 htmltools_0.5.9
[73] lifecycle_1.0.4 hardhat_1.4.2 bit64_4.6.0-1
[76] MASS_7.3-65 sparsevctrs_0.3.5
